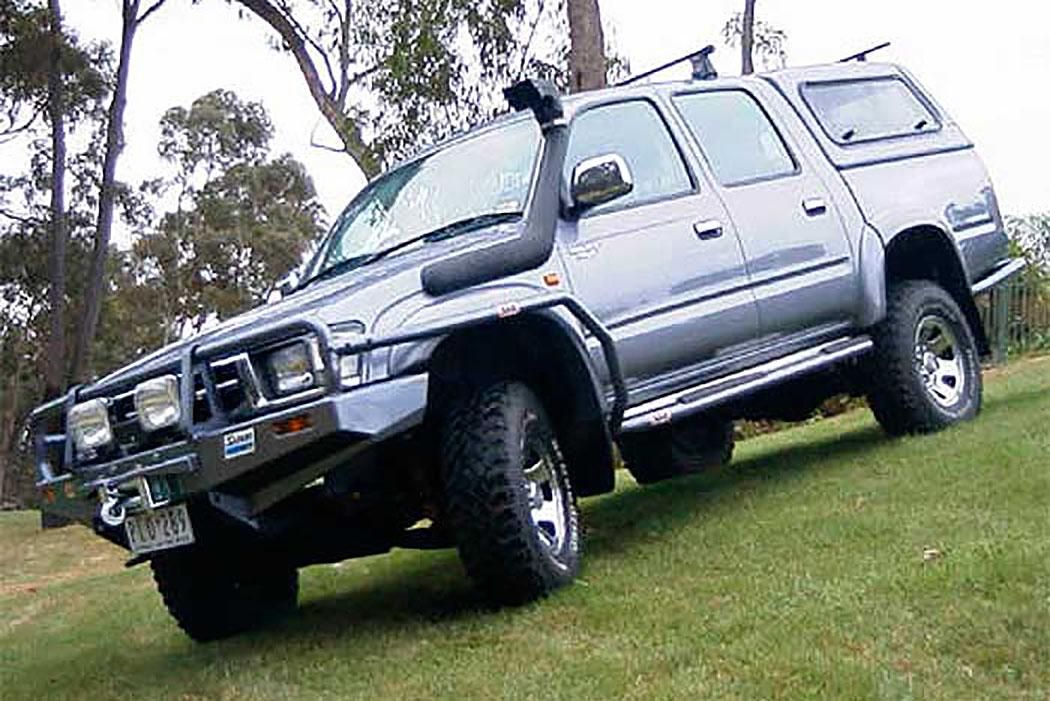

4X4 SNORKEL suitable for the Toyota Hilux 167 Series 12/1997 - 03/2005 3.0L Diesel 5L-E
Safari Part Number: SS146HFE
Safari Snorkel
The SS146HFE Safari Snorkel suitable for Toyota Hilux 167 Series 4x4 is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 12/1997 - 03/2005 3.0L Diesel 5L-E engines.
With the huge air flow demands of each engine in the Toyota 12/1997 - 03/2005 3.0L Diesel 5L-E Hilux 167 Series, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Snorkel suitable for Toyota Hilux 167 Series 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the snorkel breezes through the toughest off-road conditions on the planet.
Safari Snorkel suitable for Toyota Hilux 167 Series 4x4 Features
- Safari Automotive Australian designed, moulded and manufactured
- Raised air intake to prevent your engine from ingesting harmful elements
- Increased airflow for your 12/1997 - 03/2005 3.0L Diesel 5L-E engine
- Water separating air ram design to remove water from the air stream
- Durable and UV stable snorkel and air ram for added strength
- Comprehensive Snorkel fitting guide suitable for Toyota Hilux 167 Series 4WD with an accurate template for assisting with installation.
Safari Snorkel suitable for Toyota Hilux 167 Series 4x4 Kit - Parts List
Safari Snorkel suitable for Toyota Hilux 167 Series 4x4 Snorkel Part Number SS146HFE
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | 315-133-200R | BODY - SNORKEL | 1 |
| 2 | 000-135-800 | 3 ½” AIR RAM ASSEMBLEY | 1 |
| 3 | 315-032-400 | BRACKET - UPPER MOUNTING | 1 |
| 4 | 000-002-100 | BOLT - HEX 6.0mm x 1.0mm x 14mm | 3 |
| 5 | 000-951 | SCREW - S/T 4.2mm x 13mm | 3 |
| 6 | 000-960 | PLASTIC CLIP - PLASTIC | 3 |
| 7 | 315-024-000 | HOSE - AIR ENTRY | 1 |
| 8 | 000-110 | STUD - S/S 8mm x 1.25mm x 25mm O/L | 6 |
| 9 | 000-311-300 | WASHER - BODY 8mm x 30mm | 6 |
| 10 | 000-205-300 | NUT - NYLOC 8mm x 1.25mm | 6 |
| 11 | 000-908 | CLAMP - HOSE 70/90 mm | 2 |
| 12 | 315-025-500 | SLEEVE - AIR INLET (S/S) | 1 |
| 13 | 315-017-200 | TEMPLATE | 1 |
| 14 | 000-914/B | HOSE CLAMP - SIZE 56 (BLACK) | 1 |
