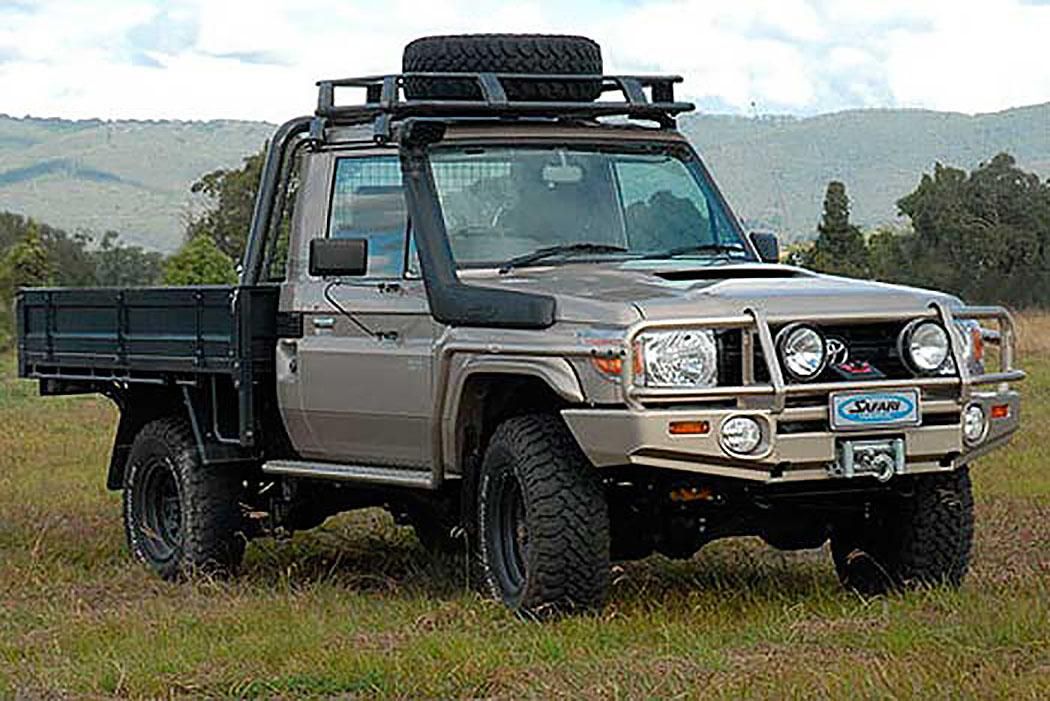

The SS76HFZ Snorkel suitable for Toyota 76, 78 & 79 Series Wide Front Landcruiser 4x4 Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 03/2007 to 2023 4.2L Diesel 1HZ engines.
With the huge air flow demands of each engine in the Toyota 03/2007 to 2023 4.2L Diesel 1HZ 76, 78 & 79 Series Wide Front Landcruiser, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.
Huge air flow is but one aspect of the ultimate in snorkel design suitable for Toyota 76, 78 & 79 Series Wide Front Landcruiser. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.
The genuine Safari Snorkel suitable for Toyota 76, 78 & 79 Series Wide Front Landcruiser 4x4 is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Toyota snorkel breezes through the toughest off-road conditions on the planet.
V-Spec snorkels are identified with a ‘HF’ at the end of the part number. These snorkels are manufactured in Australia from Safari’s own industrial specification UV stabilized polyethylene material. A life time warranty is included for peace of mind when it comes to your vehicle.

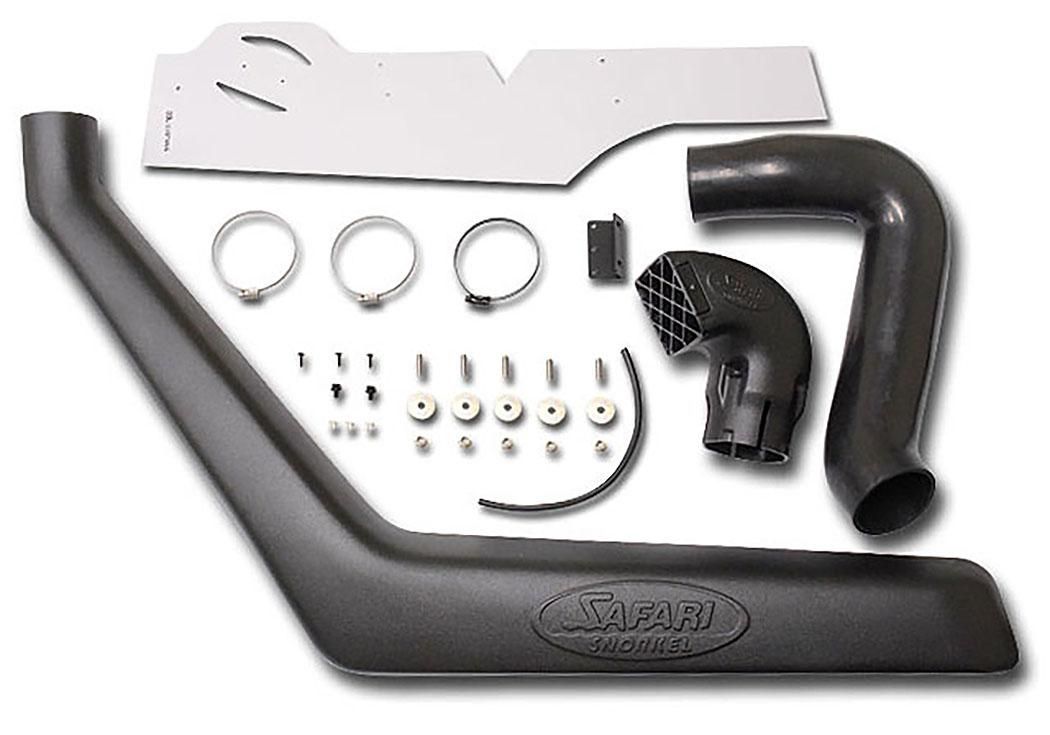

Safari Snorkel suitable for Toyota 4x4 Snorkel Part Number SS76HFZ
ITEM | PART NO. | DESCRIPTION | QTY |
---|---|---|---|
1 | 330-133-700 | BODY - SNORKEL (SS76HFZ) | 1 |
2 | 000-135-650 | 3 1/2" AIR RAM ASSEMBLY | 1 |
3 | 330-032-700 | BRACKET - UPPER MOUNTING | 1 |
4 | 000-002-100 | BOLT - HEX - 6mm x 1.0 x 14mm (SEMS) | 2 |
5 | 000-951-300 | SCREW - S/T - 4.2mm x 16mm | 3 |
6 | 000-960 | INSERT – PLASTIC | 3 |
7 | 000-110 | STUD - S/S - 8mm x 1.25 x 25mm | 5 |
8 | 000-311 | WASHER - BODY - 8mm x 30mm | 5 |
9 | 000-205 | NUT - NYLOC - 8mm x 1.25mm | 5 |
10 | 330-024-700 | HOSE - AIR ENTRY | 1 |
11 | 000-908 | CLAMP - HOSE - 70/90mm | 1 |
12 | 000-909 | CLAMP - HOSE - 80/100mm | 1 |
13 | 000-953-030 | RUBBER EDGING | 1 |
14 | 000-914/B | CLAMP - HOSE - No. 56 (BLACK) | 1 |
15 | 330-017-700 | TEMPLATE | 1 |
